POLYMER SOLUTIONS
EOS P 500
  • The innovative recoater, which applies and densifies material with a speed of up to 0,6 m/sec, as well as two powerful 70 watt lasers reduce cost-per-part by more than 30%.
  • The new 3-stage filter unit and an intelligent thermo- and protective gas management ensure optimum process conditions.
  • The system enables maximum material flexibility (incl. high performance polymers). Open software interfaces and user-friendly tools support application and material development.
  • Extensive sensor technology plus optical monitoring enable excellent process monitoring to meet the requirements of the aerospace and automotive industries.
  • With EOSYSTEM the machine is operated intuitively. EOSPRINT 2 enables software integration in CAD systems, e. g. NX™ from Siemens and via EOSCONNECT the connection to ERP systems. Thus the EOS P 500 supports a digital control of production.
  • Automated interfaces and optimized accessories reduce the cycle time drastically and ensure building process of several days duration.

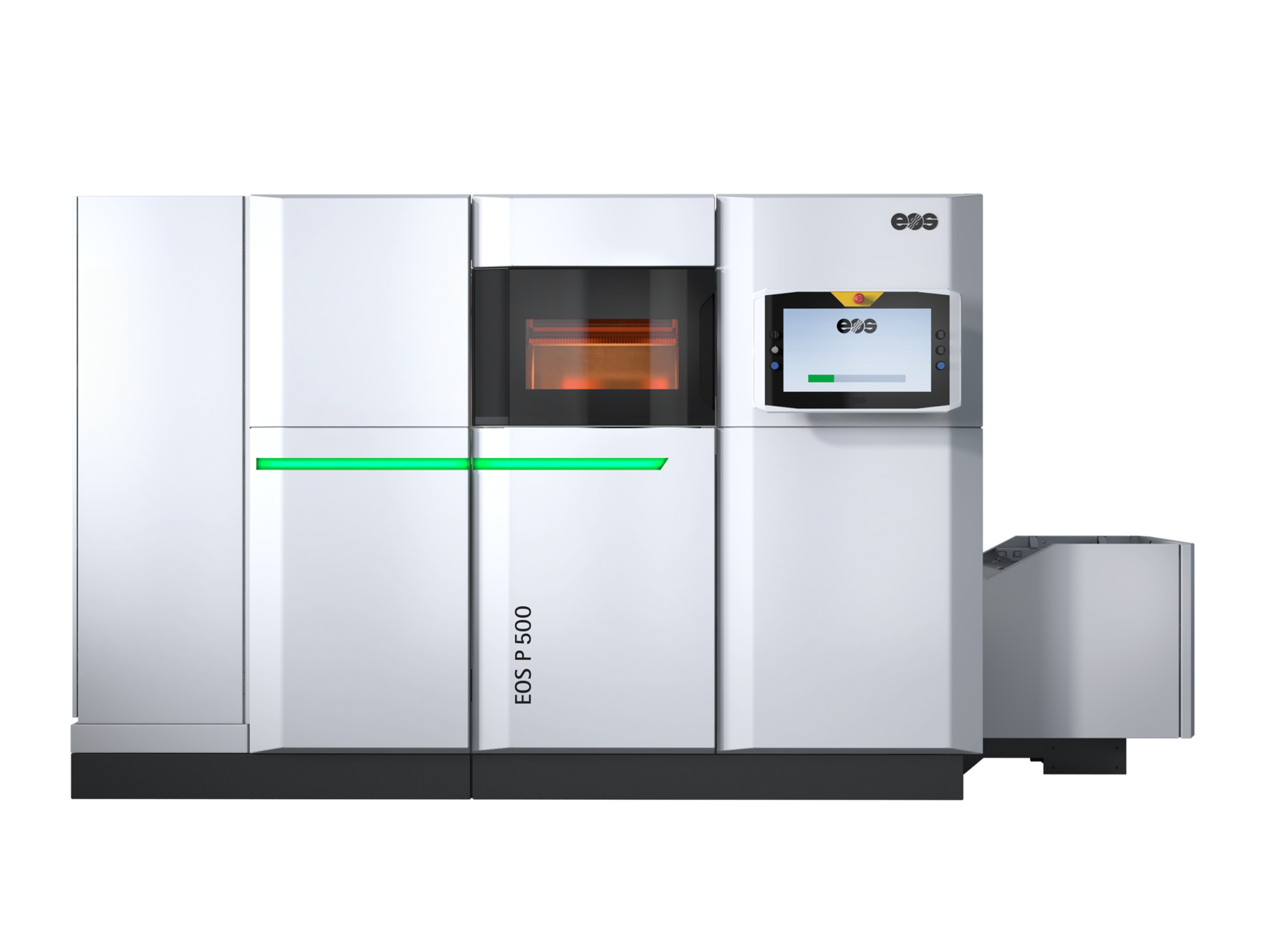

EOS P 500

Plastic Laser Sintering on an Industrial Scale

Digital Production: From CAD to Part Overnight

The innovative manufacturing platform produces high-quality components at the lowest cost-per-part. Thanks to clever hardware interfaces and accessories, the uptime of the EOS P 500 increases by up to 75% compared to predecessor systems and competition models.

EXPOSURE MODULE

LASERS
  • 2 x
    70 W

SOFTWARE

  • EOS SYSTEM SUITE

    EOS System Suite optimizes production by streamlining processes, integrating with MES and shop-floor IT systems, and generating detailed quality reports.

EOS P 500 | © EOS

EOS P 500

TECHNICAL DATA

BUILD VOLUME 500 x 330 x 400 mm (19.7 x 13.0 x 15.7 in)
LASER TYPE CO₂; 2 x 70 W
PRECISION OPTICS 2 F-theta-lens(es); 2 High-speed scanner(s)
SCAN SPEED up to 10.0 m/s (32.8 ft/s)
POWER SUPPLY 1 x 100 A

MATERIALS & PROCESSES

EOS has exceptional materials expertise and a comprehensive portfolio of highly developed materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the desired property profiles in the best possible way for your products

EOS P 500

  • PA 2200

    Powdered polymer material | © EOS

  • PA 2200 CarbonReduced

    Powdered polymer material | © EOS

  • PA 2201

    Powdered polymer material | © EOS

OPTIONAL ACCESSORIES

IPCM P Plus

Fully Automatic With a Closed Powder Cycle

Unpacking & Sieving Station

Unpacking and sieving station quickly removes excess material from the components, sieve and conveys used powder

Blasting Cabinet

Manually or automatically depowder components using glass or plastic blasting media

Cool Down Cover
